On Sale

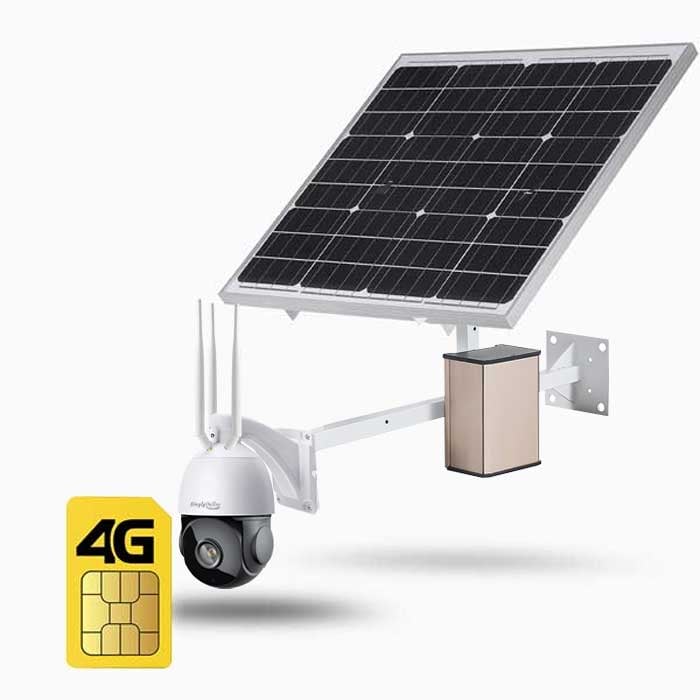

Massive 5MP 4G 200m Zoom + 60W 40Ah +128GB
Only 5 left in stock
EAN: 685381667211EAN: 685381667211
Tags: 4g4G SolarCCTVOptical Zoom CamerasOutdoor 4G Solar PTZ CamerasOutdoor Solar PTZ CamerasSolar PoweredCategories: 4G camera, 60W Solar Powered, Promo100, Security Camera, Solar CamerasSKU: 4G-PTZ-30X-5MP-PANEL-128
4G Ready
Massive Sollar Panel
Low Data Consumption
30X Optical Zoom
Two-way Audio
Remote Monitor
IP65 Weatherproof
Movement detection
Control your camera
Zoom and rotate your PTZ camera from the app, Connect your Camera with your smartphone, you can access it from anywhere.
Android Compatible
iOS Compatible
Movement Detection
How To Install The Panel
Video Tutorial: How to Install Your 60W Solar Panel

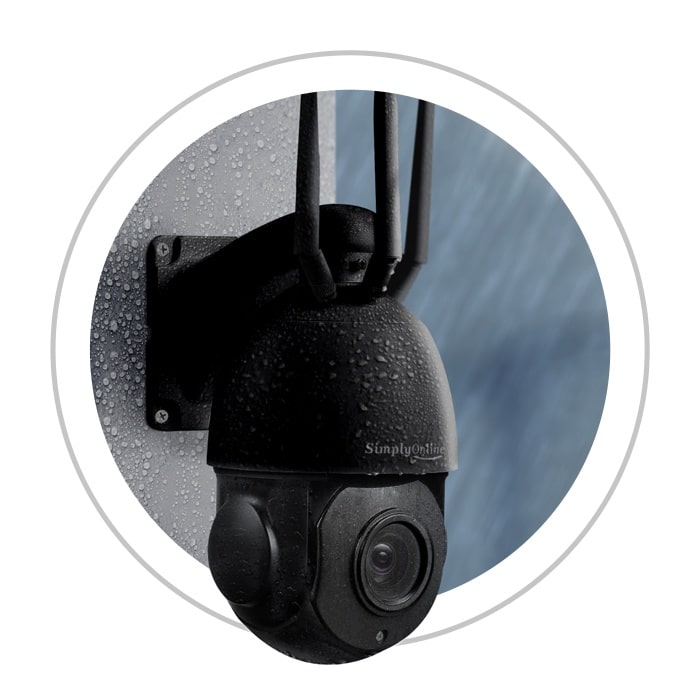

IP65 WEATHERPROOF
Protected from low-pressure water jets from any direction.
30X Zoom
30X optical zoom, with ultra crisp Lens
IP65 Weatherproof
Protected from low-pressure water jets from any direction.
Solar Powered
Wire Free Protection, powered by the sun
Actual Optical Zoom on these cameras are 20X Optical Zoom, but in the market they known to be 30X Optical Zoom. ( in the App also you will see 30X zoom )
Some Frequently Asked Questions
If it is zoomed all the way in it can detect 200m away, if it is not then 12m detection.
Camera Specification
- setup and Modification
- Built-in 5db WIFI module, the partition wall can transmit 30 meters
- Storage
- optional TF Card ( 16G/32G/64G/128G )
- Waterproof grade
- IP65 (Outdoor/Indoor)
- Optical zoom
- 30x
- Infrared light
- effective night vision distance 50 meters
- Rotation range
- 0°~355° in the horizontal direction, 0°~90° in the vertical direction
- Rotation speed
- horizontal speed 0.1°~40°/S ; vertical speed: 0.1°-40 ° /S
- Powersupply
- DC: 12V 3-4A
- Size:
- 137mm* 234mm
- Weight
- 1.8Kg
- Image Sensor
- 1/2.8 coms
- Effective Pixels
- 5MP
- Minimum illumination
- 0.5 [email protected] ( color); 0.09 [email protected] ( black and white);
- infrared mode
- OLux
- Optical magnification
- 30 times, autofocus
- Focal length
- 2. 7 ~1 3.5 mm
- Day and night mode
- Automatic IR-CUT switch
- Video encoding
- H.264.; MPEG4
- Image size
- 5MP
- Field of view
- 81.1°-26.2°
- Audio bitrate
- 64Kbps
- voice
- 1 input, 1 output (optional)
- Call the police
- 1 input, 1 output ( optional )
- Coding User Management
- Maximum support for a user, multi-level user authority management
- Network protocol
- TCP/IP, HTTP, DDNS, PPOE, NIP, FTP, RTSP, RTP
- Access protocol
- Onvif standard
- Remote function
- Support remote configuration, remote upgrade
- Web service
- Embedded Webserver server, support IE browsing
- Network bandwidth
- 64 kbps-12Wbps, multi-level dynamic adjustable
- Network Type
- FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
- Working frequency
- Works On all Australia's Network
- rate FDD-LTE/TDD-LTE
- Uplink 50M / Downlink 150Mbps
- HSPA
- Uplink 5.76M / Downlink 21Mbps
- TD-SCDMA
- Uplink 2.2Mbps / Downlink 2.8Mbps
- USIM/SIM
- Micro SIM card
- Product Size
- 4 inch
- Shell material
- Aluminum alloy
- Scaffolds
- Aluminum alloy
- Input voltage
- Standard DC12V3-4A
- Power consumption Day
- < 4 W Night: < 10 W
- Operating temperature
- -40°C~70°C
- Installation method
- Two types of wall mounting and hoisting / standard wall mounting
Solar Panel and Battery Specification
- Rated power
- 60W
- Production Tolerance
- +3%
- Maximum power voltage
- 17.56V
- durable goods
- 25 years
- Maximum power
- 60.46W
- Maximum current
- 2.85A
- Short-circuit current
- 3.45A
- Open-circuit voltage
- 22.32V
- Temperature coefficient of ISC
- +0.04
- Temperature coefficient of VOC
- -0.38
- Power temperature coefficient
- -0.47
- Temperature coefficient of IM
- +0.04
- Temperature coefficient of VM
- -0.38
- Temperature range
- -40 ~ +85 ℃
- Rated current of bypass diode
- 12A
- Allow the load
- 23m/s,7.53g
- Maximum surface load capacity
- 2400Pa
- Size
- 590*679*30mm
- Batteries
- 18650 ternary lithium-ion
- Capacity
- 40Ah
- Nominal voltage
- 12V
- Charge/discharge protection voltage
- 12.6V/9V
- Normal charging current
- 10A
- Maximum charge/discharge current
- 30A
- Recommended discharge temperature
- -20℃ ~ 60℃
- Recommended charging temperature
- -5℃ ~ 45℃
- Storage time
- ≥18 months (25℃)
- Size
- 125*100*142mm
Lets see what a 4G Solar Camera is and how it can help.
4G is the fourth generation technology used for communication in mobile networks. It provides faster data transfer rates, improved network reliability, and better coverage than its predecessor, 3G.
The industry that uses 4G (LTE) solar cameras the most is the construction industry, especially for remote or temporary construction sites where there may not be access to power sources or reliable internet connections. Other industries that may use 4G solar security cameras include agriculture, oil and gas, environmental monitoring, and public safety.
Solar refers to the energy that is derived from the sun. It is a renewable source of energy that can be harnessed through the use of solar panels. A solar security camera is a type of security camera that is powered by solar panels. These cameras use solar energy to power their operation, which makes them more suitable for outdoor environments where access to electricity may not be possible or convenient. Solar security cameras are ideal for locations such as rural areas, parks, construction sites, and remote locations where traditional power sources are not available. They help in safeguarding and monitoring the premises without the need for electrical wiring or batteries. Additionally, the installation of solar security cameras is quicker and more cost-effective than traditional cameras. They are also more eco-friendly, as they reduce the carbon footprint by using renewable energy sources.
The security industry uses 4G security cameras the most. This includes farmers, retail stores, construction sites, manufacturing plants, and residential properties. Security cameras with 4G connectivity are particularly useful in remote locations where traditional wired or Wi-Fi solutions are not available or reliable. They allow for real-time monitoring and are designed to withstand harsh weather conditions, making them suitable for outdoor use.
Security cameras footage can be viewed live through a mobile app (Some models support PC access too). Make sure that you have a strong and stable 4G network connection to ensure smooth viewing. You need to set up the camera and mobile app before being able to access the live view.
A security camera records footage onto an SD card using a process known as digital recording. The camera captures video footage of the area it is monitoring, which is then processed into digital data. This digital data is compressed and saved onto the SD card, typically in a format such as MP4 or AVI. The camera is equipped with a storage interface (APP) that allows it to communicate with the SD card slot. The SD card is inserted into the camera and is recognized as an external storage device. The camera is then programmed to record footage onto the SD card continuously or on a set schedule. As the camera records footage, it saves the data onto the SD card in real-time. The amount of footage that can be recorded will depend on the size of the SD card. Once the card is full, the camera overwrite the oldest footage with new footage. When the user wants to view the recorded footage, he/she can access it via the APP or the SD card can be removed from the camera and inserted into a computer or other device with an SD card reader. The footage can then be accessed, viewed, and saved for future use.
Solar cameras use rechargeable batteries in conjunction with solar panels to power the camera. When the sun is shining, the solar panel collects energy and charges the battery, which then powers the camera. When the sun is not shining, the battery will continue to power the camera until it needs to be charged again. Rechargeable batteries are ideal for solar units because they can go through multiple charge and discharge cycles without losing capacity. This means that the battery can be used and recharged repeatedly, which is necessary for a camera that is designed to be outside and exposed to various weather conditions. Additionally, rechargeable batteries are more environmentally friendly than single-use batteries, as they can be reused over and over again, reducing waste and lowering the carbon footprint.
1. Remote Access: 4G / Sim Solar Camera offer farmers superior remote access capabilities. These cameras can be accessed remotely from anywhere in the world using a smartphone, tablet, or computer with an Internet connection. This allows farmers to monitor their properties and livestock even when they are away. 2. Real-Time Monitoring: With 4G Camera, farmers can monitor their farms in real-time. This means that they can immediately detect any security threats, malicious activity, or suspicious behavior, and take action accordingly. 3. High-Quality Images: 4G Solar Security Cameras produce high-quality images and videos that allow farmers to capture and identify potential thieves and predators accurately. The cameras are equipped with high-resolution lenses that capture clear images day and night. 4. Wireless Connectivity: These LTE cameras are wireless and work off cellular data connections. This eliminates the need for expensive and complicated wiring installations, which saves farmers time and money. 5. Solar-Powered: These PTZ units are equipped with solar panels that charge the camera's battery and support uninterrupted operation. This makes them environmentally friendly and cost-effective, as the farmer does not have to pay for electricity. 6. Night Vision: 4G Solar Security Cameras have infrared technology that allows them to capture clear images in low-light conditions. This ensures that farmers can monitor their farms 24/7, even in the dark. 7. Motion Detection: All of our security cameras are equipped with motion detection sensor - *PIR technology that automatically alerts farmers when it senses any movement. This means that farmers can immediately take action, even if they are not watching the camera feed at the time. Overall, 4G Solar Security Cameras offer farmers a cost-effective and reliable solution for securing their farms and livestock. With their remote access, real-time monitoring, high-quality images, wireless connectivity, solar power, night vision, and motion detection, these cameras provide farmers with the peace of mind they need to rest easy. *What is PIR (https://en.wikipedia.org/wiki/Passive_infrared_sensor)
If the cameras are installed on private property, the owner can typically relocate them at their discretion. However, if they are installed on public property, such as a street corner or intersection, there may be legal or regulatory requirements that need to be followed. Moreover, relocating CCTV cameras may require technical expertise, and it is essential to ensure that the new location provides adequate coverage and does not violate any privacy or legal concerns. Therefore, it is recommended to consult with a professional and local authorities before relocating CCTV cameras.
Guide
- The first cruise line (preset position 1-32)
- Call preset No. 41
- The second cruise line (preset positions 17-32)
- Call preset No. 42
- Left and right limit scan, set the left boundary
- Set preset position No. 35
- Left and right limit scan, set the right boundary
- Set preset position No. 36
- Clear left and right limit scan
- Set preset position No. 38
- Set limit scan speed
- Set 61-64 preset position (setting 61 is the slowest, 64 is the fastest)
- Set Dome control maximum speed
- Set preset No. 113 + set N (N is 1-64, the default is 64)
- Set cruise stay time
- Set No. 114 preset position + set N (N is 1-255 seconds, the default is 6 seconds)
- Set cruising speed
- Set preset position 115 + set N (N is 1-64, default 64)
- Idle action: open/close
- Call 105: open; set 105: close
- Idle action settings
- Call 101: guard position (preset position 1) - Call 102: 360 degree scan - Call 103: limit scan - Call 104: the first cruise line
- PTZ recalibration
- Call preset No. 34
- Initialization (PTZ Restores Factory Settings)
- Call preset No. 115
- Set tracking guard position
- Set No. 92 preset position
- Turn on guard position humanoid tracking mode
- Call preset No. 92
- Turn on the cruise line humanoid tracking mode
- Call preset No. 93
- Turn off humanoid tracking
- Call preset No. 94
- Set tracking time
- Set No. 93 preset position + set N (N is the tracking time, the value is 20-255 seconds)
This Setup Can Run For 24/7 Monitoring
Batteries are not included in the warranty. No warranty is given on battery performance
You need to get your own sim card – Sim card would not be provided.
Batteries are not included in the warranty. No warranty is given on battery performance
You need to get your own sim card – Sim card would not be provided.
Weight | 14 kg |
---|---|
Dimensions | 24 × 75 × 61 cm |
Color | White |
SD Storage | No SD Card, 128 GB |
