Massive 5MP 4G 30X optical zoom + No Panel

Out of stock

Original price was: $521.00.Current price is: $489.00.
EAN: 685381657571EAN: 685381657571

What 4G Sim Card do I get for our camera?

You can use any provider that works best in your area. Just make sure that you have 4G/5G coverage and some data to operate the unit (Minimum 1GB/month).

We do recommend and use Boost ourselves as they are running on full Telstra's Network and they have generous yearly plan.

play button - Simply Online Australia

Actual Optical Zoom on these cameras are 20X Optical Zoom, but in the market they known to be 30X Optical Zoom. ( in the App also you will see 30X zoom )






Speedy Installation

30X Optical Zoom

4G Ready

Live Notifications

Two-Way Audio

IP65 Weatherproof




30X Zoom

30X optical zoom, with ultra crisp 5MP Lens


Sample Footage





Speedy Installation

Easy and fast home security setup in under 5 minutes


Control your camera

Zoom and rotate your camera from the app, Connect your Camera with your smartphone, you can access it from anywhere, the app will send you push notifications for movement and if you have more than 1 camera, you can list them on the app (other cameras should support the same app for monitoring)



Two-Way Audio

enables you to receive and transmit audio through the camera

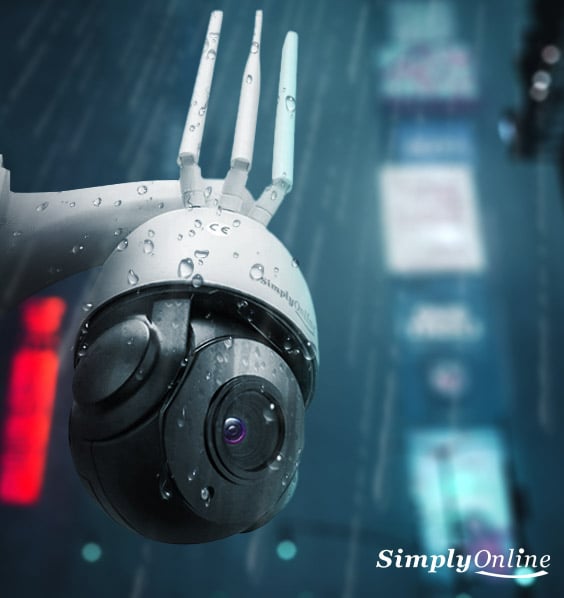

IP65 Weatherproof

our product is protected against multi-directional, low-pressure water jets

App



CamHi Pro

Google Play    App store




Camera Specification

System functions

setup and Modification
Built-in 5db WIFI module, the partition wall can transmit 30 meters
Storage
optional TF Card ( 16G/32G/64G/128G )
Waterproof grade
IP65 (Outdoor/Indoor)
Optical zoom
30x
Infrared light
effective night vision distance 50 meters
Rotation range
0°~355° in the horizontal direction, 0°~90° in the vertical direction
Rotation speed
horizontal speed 0.1°~40°/S ; vertical speed: 0.1°-40 ° /S
Powersupply
DC: 12V 3-4A
Size:
137mm* 234mm
Weight
1.8Kg

Camera parameters

Image Sensor
1/2.8 coms
Effective Pixels
5MP
Minimum illumination
0.5 [email protected] ( color); 0.09 [email protected] ( black and white);
infrared mode
OLux
Optical magnification
30 times, autofocus
Focal length
2. 7 ~1 3.5 mm
Day and night mode
Automatic IR-CUT switch
Video encoding
H.264.; MPEG4
Image size
5MP
Field of view
81.1°-26.2°

PTZ parameters

spinning speed Horizontal
0.1°~40°/ sec; Vertical 0.1°-40 ° / sec
Rotation angle Horizontal
0°~355° continuous rotation; vertical 0°~90°
Preset point speed Horizontal
40°/ sec ; Vertical 40 ° / sec
AB two-point scanning Arbitrarily
set
AB two-point scanning speed Adjustable
three speeds
Number of inspection groups
8 groups ( 8 preset positions per group )
Preset
128 Ge
Power-on action
have
Guard position
have

Infrared light

Number of infrared lights
Using Ф14=6 high-power array infrared lights
The effective distance
50 Meters
Automatic control of infrared light
Automatically switch between far and near infrared light / manual / far light / near the light at night according to the camera focal length

Audio

Audio bitrate
64Kbps
voice
1 input, 1 output (optional)
Call the police
1 input, 1 output ( optional )

Internet Connection

Coding User Management
Maximum support for a user, multi-level user authority management
Network protocol
TCP/IP, HTTP, DDNS, PPOE, NIP, FTP, RTSP, RTP
Access protocol
Onvif standard
Remote function
Support remote configuration, remote upgrade
Web service
Embedded Webserver server, support IE browsing
Network bandwidth
64 kbps-12Wbps, multi-level dynamic adjustable
Network Type
FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
Working frequency
Works On all Australia’s Network
rate FDD-LTE/TDD-LTE
Uplink 50M / Downlink 150Mbps
HSPA
Uplink 5.76M / Downlink 21Mbps
TD-SCDMA
Uplink 2.2Mbps / Downlink 2.8Mbps
USIM/SIM
Micro SIM card

Product structure

Product Size
4 inch
Shell material
Aluminum alloy
Scaffolds
Aluminum alloy
Input voltage
Standard DC12V3-4A
Power consumption Day
< 4 W Night: < 10 W
Operating temperature
-40°C~70°C
Installation method
Two types of wall mounting and hoisting / standard wall mounting

Packing

Specification

Package dimensions
185×195×250mm
Gross weight
1.8kg



PTZ Tracking Modes and command list

Guide

The first cruise line (preset position 1-32)
Call preset No. 41
The second cruise line (preset positions 17-32)
Call preset No. 42
Left and right limit scan, set the left boundary
Set preset position No. 35
Left and right limit scan, set the right boundary
Set preset position No. 36
Clear left and right limit scan
Set preset position No. 38
Set limit scan speed
Set 61-64 preset position (setting 61 is the slowest, 64 is the fastest)
Set Dome control maximum speed
Set preset No. 113 + set N (N is 1-64, the default is 64)
Set cruise stay time
Set No. 114 preset position + set N (N is 1-255 seconds, the default is 6 seconds)
Set cruising speed
Set preset position 115 + set N (N is 1-64, default 64)
Idle action: open/close
Call 105: open; set 105: close
Idle action settings
Call 101: guard position (preset position 1) – Call 102: 360 degree scan – Call 103: limit scan – Call 104: the first cruise line
PTZ recalibration
Call preset No. 34
Initialization (PTZ Restores Factory Settings)
Call preset No. 115
Set tracking guard position
Set No. 92 preset position
Turn on guard position humanoid tracking mode
Call preset No. 92
Turn on the cruise line humanoid tracking mode
Call preset No. 93
Turn off humanoid tracking
Call preset No. 94
Set tracking time
Set No. 93 preset position + set N (N is the tracking time, the value is 20-255 seconds)



You need to get your own sim card – Sim card would not be provided.
Weight 2.2 kg
Dimensions 14 × 25 × 30 cm
Color

White, Black

SD Storage

No SD Card, 128 GB
