On Sale

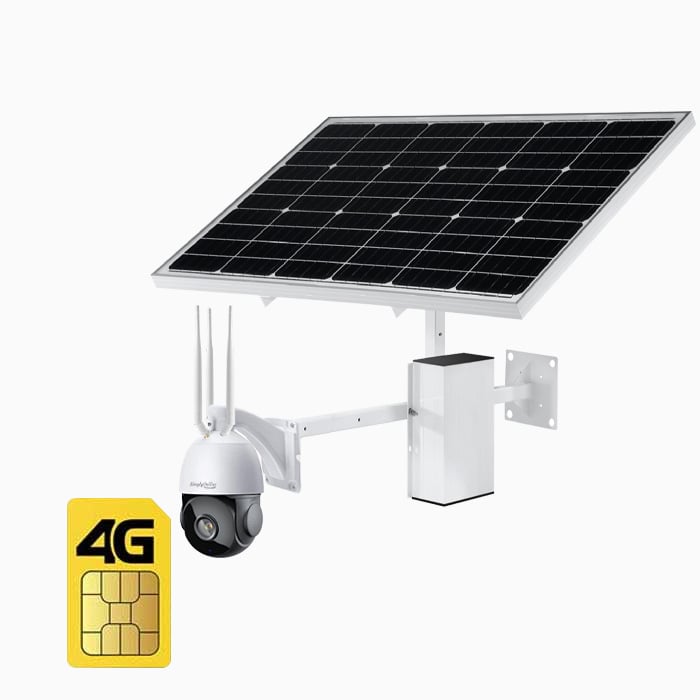

Massive 5MP 4G 30X optical zoom + 120W 60Ah
$2,100.00 – $2,145.00
Actual Optical Zoom on these cameras are 20X Optical Zoom, but in the market they known to be 30X Optical Zoom. ( in the App also you will see 30X zoom )
30X Optical Zoom
Solar Powered
4G Ready
Live Notifications
Two-Way Audio
IP65 Weatherproof
30X Zoom
30X optical zoom, with ultra crisp 5MP Lens
Sample Footage
Speedy Installation
Easy and fast home security setup in under 5 minutes
Control your camera
Zoom and rotate your camera from the app, Connect your Camera with your smartphone, you can access it from anywhere, the app will send you push notifications for movement and if you have more than 1 camera, you can list them on the app (other cameras should support the same app for monitoring)
Two-Way Audio
enables you to receive and transmit audio through the camera
IP65 Weatherproof
our product is protected against multi-directional, low-pressure water jets
App
- Solar 120 watts, 60AH lithium battery,
- This Setup Can Run and Record For 24/7 Monitoring
- Special solar bracket
- 30X Zoom
Camera Specification
System functions
- setup and Modification
- Built-in 5db WIFI module, the partition wall can transmit 30 meters
- Storage
- optional TF Card ( 16G/32G/64G/128G )
- Waterproof grade
- IP65 (Outdoor/Indoor)
- Optical zoom
- 30x
- Infrared light
- effective night vision distance 50 meters
- Rotation range
- 0°~355° in the horizontal direction, 0°~90° in the vertical direction
- Rotation speed
- horizontal speed 0.1°~40°/S ; vertical speed: 0.1°-40 ° /S
- Powersupply
- DC: 12V 3-4A
- Size:
- 137mm* 234mm
- Weight
- 1.8Kg
Camera parameters
- Image Sensor
- 1/2.8 coms
- Effective Pixels
- 5MP
- Minimum illumination
- 0.5 [email protected] ( color); 0.09 [email protected] ( black and white);
- infrared mode
- OLux
- Optical magnification
- 30 times, autofocus
- Focal length
- 2. 7 ~1 3.5 mm
- Day and night mode
- Automatic IR-CUT switch
- Video encoding
- H.264.; MPEG4
- Image size
- 5MP
- Field of view
- 81.1°-26.2°
PTZ parameters
- spinning speed Horizontal
- 0.1°~40°/ sec; Vertical 0.1°-40 ° / sec
- Rotation angle Horizontal
- 0°~355° continuous rotation; vertical 0°~90°
- Preset point speed Horizontal
- 40°/ sec ; Vertical 40 ° / sec
- AB two-point scanning Arbitrarily
- set
- AB two-point scanning speed Adjustable
- three speeds
- Number of inspection groups
- 8 groups ( 8 preset positions per group )
- Preset
- 128 Ge
- Power-on action
- have
- Guard position
- have
Infrared light
- Number of infrared lights
- Using Ф14=6 high-power array infrared lights
- The effective distance
- 50 Meters
- Automatic control of infrared light
- Automatically switch between far and near infrared light / manual / far light / near the light at night according to the camera focal length
Audio
- Audio bitrate
- 64Kbps
- voice
- 1 input, 1 output (optional)
- Call the police
- 1 input, 1 output ( optional )
Internet Connection
- Coding User Management
- Maximum support for a user, multi-level user authority management
- Network protocol
- TCP/IP, HTTP, DDNS, PPOE, NIP, FTP, RTSP, RTP
- Access protocol
- Onvif standard
- Remote function
- Support remote configuration, remote upgrade
- Web service
- Embedded Webserver server, support IE browsing
- Network bandwidth
- 64 kbps-12Wbps, multi-level dynamic adjustable
- Network Type
- FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
- Working frequency
- Works On all Australia’s Network
- rate FDD-LTE/TDD-LTE
- Uplink 50M / Downlink 150Mbps
- HSPA
- Uplink 5.76M / Downlink 21Mbps
- TD-SCDMA
- Uplink 2.2Mbps / Downlink 2.8Mbps
- USIM/SIM
- Micro SIM card
Product structure
- Product Size
- 4 inch
- Shell material
- Aluminum alloy
- Scaffolds
- Aluminum alloy
- Input voltage
- Standard DC12V3-4A
- Power consumption Day
- < 4 W Night: < 10 W
- Operating temperature
- -40°C~70°C
- Installation method
- Two types of wall mounting and hoisting / standard wall mounting
Packing
Specification
- Size
- 20x72x66
- Weight
- 18KG
PTZ Tracking Modes and command list
Guide
- The first cruise line (preset position 1-32)
- Call preset No. 41
- The second cruise line (preset positions 17-32)
- Call preset No. 42
- Left and right limit scan, set the left boundary
- Set preset position No. 35
- Left and right limit scan, set the right boundary
- Set preset position No. 36
- Clear left and right limit scan
- Set preset position No. 38
- Set limit scan speed
- Set 61-64 preset position (setting 61 is the slowest, 64 is the fastest)
- Set Dome control maximum speed
- Set preset No. 113 + set N (N is 1-64, the default is 64)
- Set cruise stay time
- Set No. 114 preset position + set N (N is 1-255 seconds, the default is 6 seconds)
- Set cruising speed
- Set preset position 115 + set N (N is 1-64, default 64)
- Idle action: open/close
- Call 105: open; set 105: close
- Idle action settings
- Call 101: guard position (preset position 1) – Call 102: 360 degree scan – Call 103: limit scan – Call 104: the first cruise line
- PTZ recalibration
- Call preset No. 34
- Initialization (PTZ Restores Factory Settings)
- Call preset No. 115
- Set tracking guard position
- Set No. 92 preset position
- Turn on guard position humanoid tracking mode
- Call preset No. 92
- Turn on the cruise line humanoid tracking mode
- Call preset No. 93
- Turn off humanoid tracking
- Call preset No. 94
- Set tracking time
- Set No. 93 preset position + set N (N is the tracking time, the value is 20-255 seconds)
This Setup Can Run For 24/7 Monitoring
Batteries are not included in the warranty. No warranty is given on battery performance
You need to get your own sim card – Sim card would not be provided.
| Weight | 22 kg |
|---|---|
| Dimensions | 97 × 73 × 21 cm |
| SD Storage | No SD Card, 128 GB |
